EL‑BarrierCan & EL‑FuelCan 20
Store, transport and dispense fuel – without unnecessary compromises
Store, transport and dispense fuel – without unnecessary compromises
The canisters in our EL‑FuelCan product family consist of six bonded material layers. An integrated barrier layer significantly reduces the diffusion of fuel components and atmospheric moisture through the canister wall.
This provides the fuel with better protection against external influences. At the same time, when the canister is properly sealed, the typical odour associated with conventional plastic fuel canisters is significantly reduced.
Following the great interest shown at JetPower, this high-quality multi-layer canister is now also available separately, with a choice of 10-litre or 20-litre capacity.
10 litres
Compact and easy to handle
Compact and easy to handle
20 litres
More fuel capacity
More fuel capacity
EL‑FuelCan 20
Fully equipped and
ready for immediate use
Fully equipped and
ready for immediate use
Produkt | Ausstattung | Preis |
| EL‑BarrierCan 10 | 10-litre multi-layer canister with cap | 39,90 € |
| EL‑BarrierCan 20 | 20-litre multi-layer canister with cap | 64,90 € |
| EL‑FuelCan 20 | Fully equipped with mounting bracket, hoses, shut-off valve and two filter clunks | 259,00 € |
Which version is right for me?

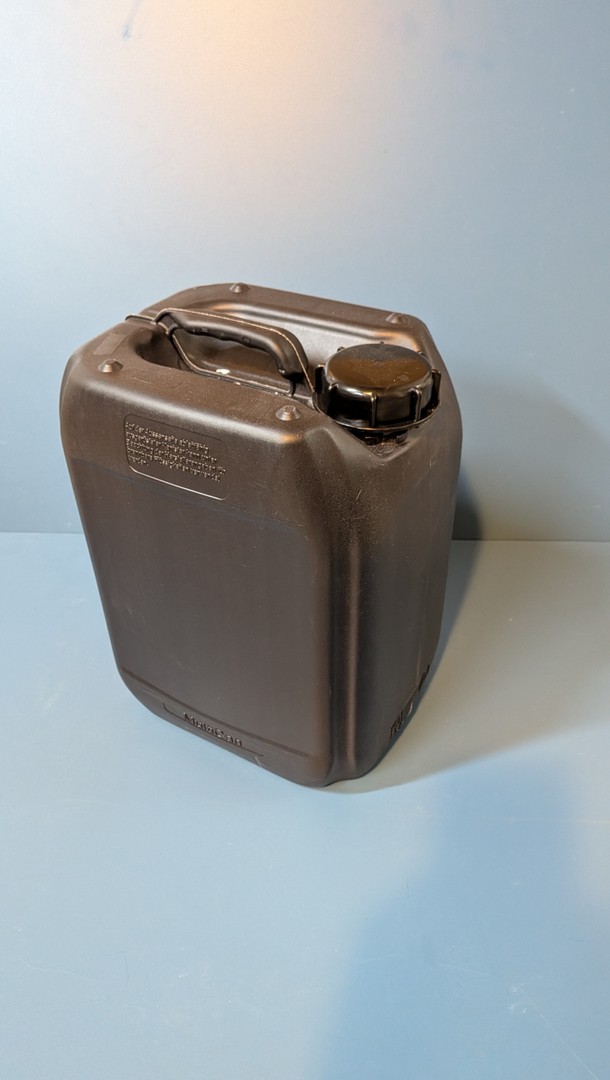

EL‑BarrierCan 10
The compact multi-layer fuel canister for pilots who wish to continue using their existing fuelling equipment.
- 10-litre capacity
- Six-layer canister construction
- Integrated diffusion barrier
- Compact and easy to transport
- Supplied as a canister with cap
- Supplied without hoses, filters or mounting bracket
€39.90 incl. VAT

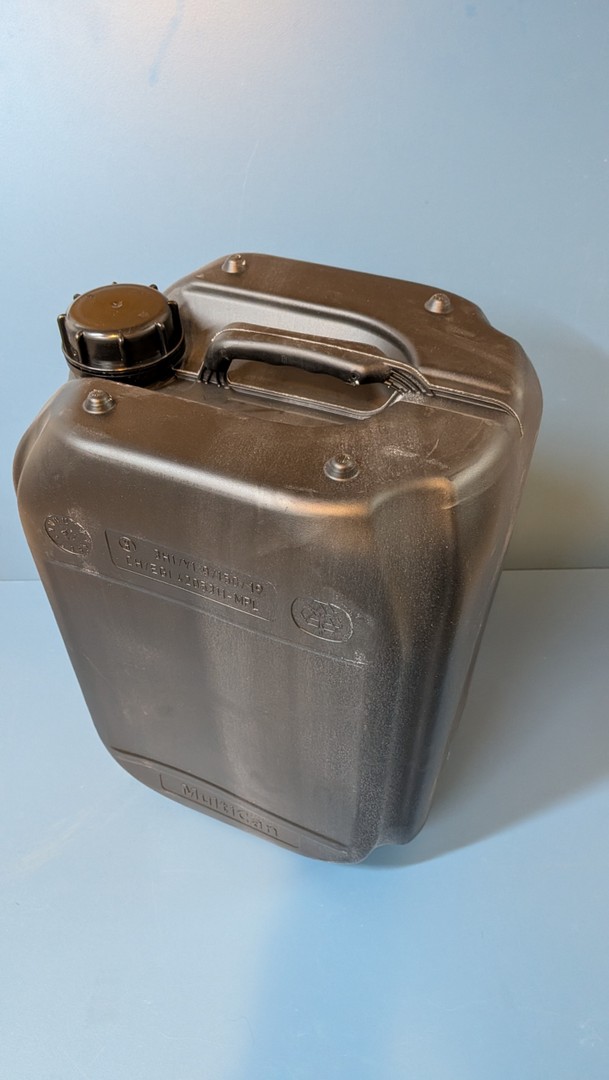

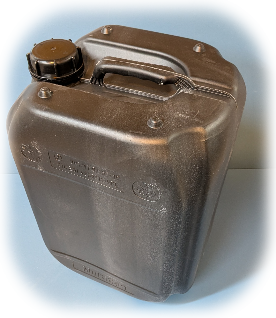

EL‑BarrierCan 20
More fuel capacity with all the same benefits of the multi-layer canister construction.
- 20-litre nominal capacity
- Approx. 22.5-litre actual overflow capacity
- Six-layer canister construction
- Integrated diffusion barrier
- Ideal for larger models and intensive flying days
- Supplied as a canister with cap
- Supplied without hoses, filters or mounting bracket
€64.90 incl. VAT
EL‑FuelCan 20 – the fully equipped fuelling solution
The EL‑FuelCan 20 is based on the same high-quality multi-layer canister, but is fully equipped for professional use with the EL‑FuelStation.
- Integrated mounting bracket for the EL‑FuelStation
- Separate hoses for filling and defuelling
- Two filter clunks for high, bubble-free flow
- Integrated shut-off valve
- Flexible hose routing for left- and right-handed users
- Flow rate of up to 1 litre per minute
- Professional fuelling solution, ready for immediate use
€259.00 incl. VAT
Six layers – one crucial barrier
Conventional plastic canisters may allow small amounts of fuel components and moisture to permeate through their walls. This can lead to fuel odours and may affect fuel quality during prolonged storage.
In contrast, the wall of the EL‑BarrierCan consists of six carefully coordinated material layers. The integrated barrier layer minimises the exchange of substances through the canister wall.
The benefits
- Significantly less diffusion of fuel vapours to the outside
- Atmospheric moisture passes through the canister wall far less easily
- Better protection of the fuel against external influences
- Significantly reduced odour in workshops and vehicles
- High-quality basis for custom fuelling solutions
- Proven as the basis of the fully equipped EL‑FuelCan 20
Important: The full benefits of the diffusion barrier are only achieved when the canister is properly sealed.
-

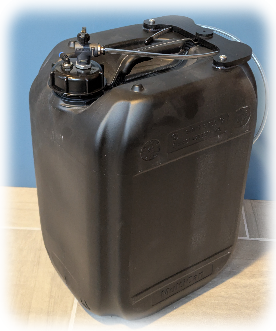

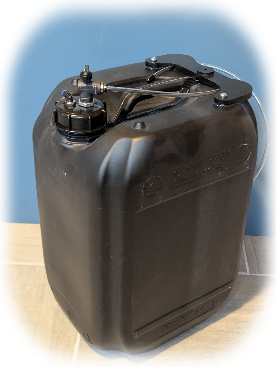

EL-FuelCan 20 L
The professional fuel can for clean, safe, and odor-free refueling
The professional fuel can for clean, safe, and odor-free refueling
The EL-FuelCan 20 L is a diffusion-tight premium fuel can designed for demanding model pilots. It was developed for clean, bubble-free and low-odor refueling. Thanks to its barrier layer, the fuel stays fresh longer, even during extended storage periods.
The combination of separate internal fuel lines, dual filtration, and a barrier layer ensures a consistent, bubble-free fuel flow at all times.
✔ Fuel stays fresh longer✔ No vapor loss & no moisture absorption✔ Bubble-free fuel delivery up to 1 L/min✔ Thoughtfully engineered in every detail
Key Features at a Glance
- 20-liter UN-approved fuel can (Y1.4, HDPE, DIN 61)
- Diffusion-tight design with barrier layer
- Separate internal lines for fueling and defueling
- Dual clunk filters for maximum flow rate
- Bubble-free delivery up to 1 liter per minute
- Overflow volume of 22.5 liters – ideal for oil mixing
- Antistatic and odor-free
- Integrated mount for the EL-FuelStation
- Hose routing configurable for left- or right-handed users
Diffusion-Tight – No Odor, No Moisture, Fresher Fuel
The EL-FuelCan is equipped with an barrier layer, making it fully diffusion-tight.
This means:
- No fuel vapors escape
- No fuel odor – even when stored in a workshop, basement, or vehicle
- No moisture ingress
- Fuel stays significantly fresher for longer periods of time
👉 A clear advantage over conventional plastic fuel cans.
Important Notice
After refueling, always close the integrated shut-off valve to fully maintain the diffusion-tight properties of the EL-FuelCan.
Separate Fuel Lines – Clean Refueling Without Compromise
Inside the fuel can, two completely separate internal fuel paths are implemented:
- Suction line for refueling
- Return line for defueling
This design prevents fuel from being pumped back and forth between filters.
Contaminants are not returned to the suction line, keeping the filters clean and ensuring consistent fuel flow.
Contaminants are not returned to the suction line, keeping the filters clean and ensuring consistent fuel flow.
➡️ A key difference compared to conventional fuel can designs.
Maximum Flow Rate – Bubble-Free up to 1 L / Minute
To achieve maximum flow performance, the suction line is equipped with two clunk filters.
Benefits:
Benefits:
- High flow rate
- No air bubbles
- Consistent delivery performance
- Ideal for automatic fueling programs and Smart-Fill functions
This design becomes especially noticeable when fueling larger tanks or during frequent refueling operations.
Perfectly Matched to the EL-FuelStation
The EL-FuelCan is the ideal companion for the EL-FuelStation and is designed as a fully integrated system:
- Integrated mounting bracket for the fueling station
- Rotatable mounting design:
- Ergonomic carrying position
- Optimal fueling position with a clear view of the display
-
- Two hose pass-through options:
- Configurable for left- or right-handed users
-
Installation is quick and simple using the 4 mm mounting screw of the base plate.
When the screw is only lightly tightened, the fueling station remains freely rotatable.
When the screw is only lightly tightened, the fueling station remains freely rotatable.
Ideal for Fuel–Oil Mixtures
With an overflow capacity of 22.5 liters, the fuel can is perfectly suited for mixing turbine fuel:
- 20 liters of fuel
- 1 liter of oil
- Sufficient reserve volume without overflow
Ideal for use at the flying field or in the workshop.
Technical Specifications
- Capacity: 20 liters
- Overflow capacity:approx. 22.5 liters
(without fuel) - Material: HDPE with barrier layer
- UN approval: Y1.4
- Standard: DIN 61
- Color: Black
- Weight: approx. 1 kg
Connections & Fuel Lines
- Suction line: 8 mm
Equipped with two clunk filters - Vent line: 4 mm
- Integrated shut-off valve
- Hose routing configurable
for left- or right-handed users
Conclusion
The EL-FuelCan 20 L is not an ordinary fuel can, but a professional fueling solution for demanding modelers and jet pilots.
For those who:
- want clean refueling
- value safety and odor-free operation
- want to keep their fuel fresh for longer periods
- require maximum flow performance
- and want to get the most out of their EL-FuelStation
the EL-FuelCan 20 L is the perfect solution.
Spareparts
20L canister for fuel
with holder for the EL-Fuel Station,
two filter pendulums and separate lines
for filling and draining.
Volume 20L
UN-Kanister
Y1.4 HDPE DIN 61
Color: black
with holder for the EL-Fuel Station,
two filter pendulums and separate lines
for filling and draining.
Volume 20L
UN-Kanister
Y1.4 HDPE DIN 61
Color: black
259,00€
Add
Spareparts
Multi-layer fuel canister with diffusion barrier
Capacity: 10 L
UN-approved canister
Y1.4 HDPE, DIN 61
Capacity: 10 L
UN-approved canister
Y1.4 HDPE, DIN 61
39,90€
Add
Spareparts
Mehrschicht-Kraftstoffkanister mit Diffusionsbarriere
Inhalt 20L
UN Kanister
Y1.4 HDPE DIN 61
Inhalt 20L
UN Kanister
Y1.4 HDPE DIN 61
64,90€
Add
Spareparts
The Pro System is a complete, professional groundstation for all tank systems. It combines intelligent tank logic, clean overflow management, and a mechanically robust canister solution into a self-contained system.
Included:
- EL-FuelStation (including SmartFill mode)
- FuelSwitch overflow sensor
- MR30 patch cable
- Hose set
- EL-FuelCan 20 with integrated bracket
Included:
- EL-FuelStation (including SmartFill mode)
- FuelSwitch overflow sensor
- MR30 patch cable
- Hose set
- EL-FuelCan 20 with integrated bracket
795,00€
Add
Spareparts
Filling station for all common fuels and all types of tanks (including bag tanks)
With SmartFill-technology
Technical data:
Weight..................... 550g
Dimensions........... 220 x 120 x 100 mm
Voltage.................... 6 – 12 volts
Current.....…………. max. 2A
Standby………….... <=15mA
Fuels…..…….........…. Kerosene, diesel, gasoline, methanol
Protection class... IP42
With SmartFill-technology
Technical data:
Weight..................... 550g
Dimensions........... 220 x 120 x 100 mm
Voltage.................... 6 – 12 volts
Current.....…………. max. 2A
Standby………….... <=15mA
Fuels…..…….........…. Kerosene, diesel, gasoline, methanol
Protection class... IP42
495,00€
Add
Spareparts
Accessories for the EL-Fuel-Station
2m hose (PU, blue)
2m spiral hose (PU, clear)
6/4 reduction from 6mm to 4mm
2m hose (PU, blue)
2m spiral hose (PU, clear)
6/4 reduction from 6mm to 4mm
25,00€
Add
