Smoke-EL is the first and only electric Smokesystem for RC modeling
Even pilots with models powered by electric engines can now enhance their flight with Smoke. Smoke-EL is not a smoke cartridge but a full-fledged Smokesystem, in which the smoke can be switched on and off.
With our system configurator, you will quickly find (just three clicks) the system you need.
Our Top-Seller:
Filling station for all common fuels and all types of tanks (including bag tanks)
With SmartFill-technology
Technical data:
Weight..................... 550g
Dimensions........... 220 x 120 x 100 mm
Voltage.................... 6 – 12 volts
Current.....…………. max. 2A
Standby………….... <=15mA
Fuels…..…….........…. Kerosene, diesel, gasoline, methanol
Protection class... IP42
With SmartFill-technology
Technical data:
Weight..................... 550g
Dimensions........... 220 x 120 x 100 mm
Voltage.................... 6 – 12 volts
Current.....…………. max. 2A
Standby………….... <=15mA
Fuels…..…….........…. Kerosene, diesel, gasoline, methanol
Protection class... IP42
495,00€
Add
Starter set with two evaporators
This set includes:
• 2 x Smoke-EL (S)
• G-Force SmokeDriver 6s-10s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system..
This set includes:
• 2 x Smoke-EL (S)
• G-Force SmokeDriver 6s-10s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system..
785,00€
Add
Starter set with one evaporator
This set includes:
• Smoke-EL (S)
• G-Force SmokeDriver 6s-10s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system.
This set includes:
• Smoke-EL (S)
• G-Force SmokeDriver 6s-10s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system.
645,00€
Add

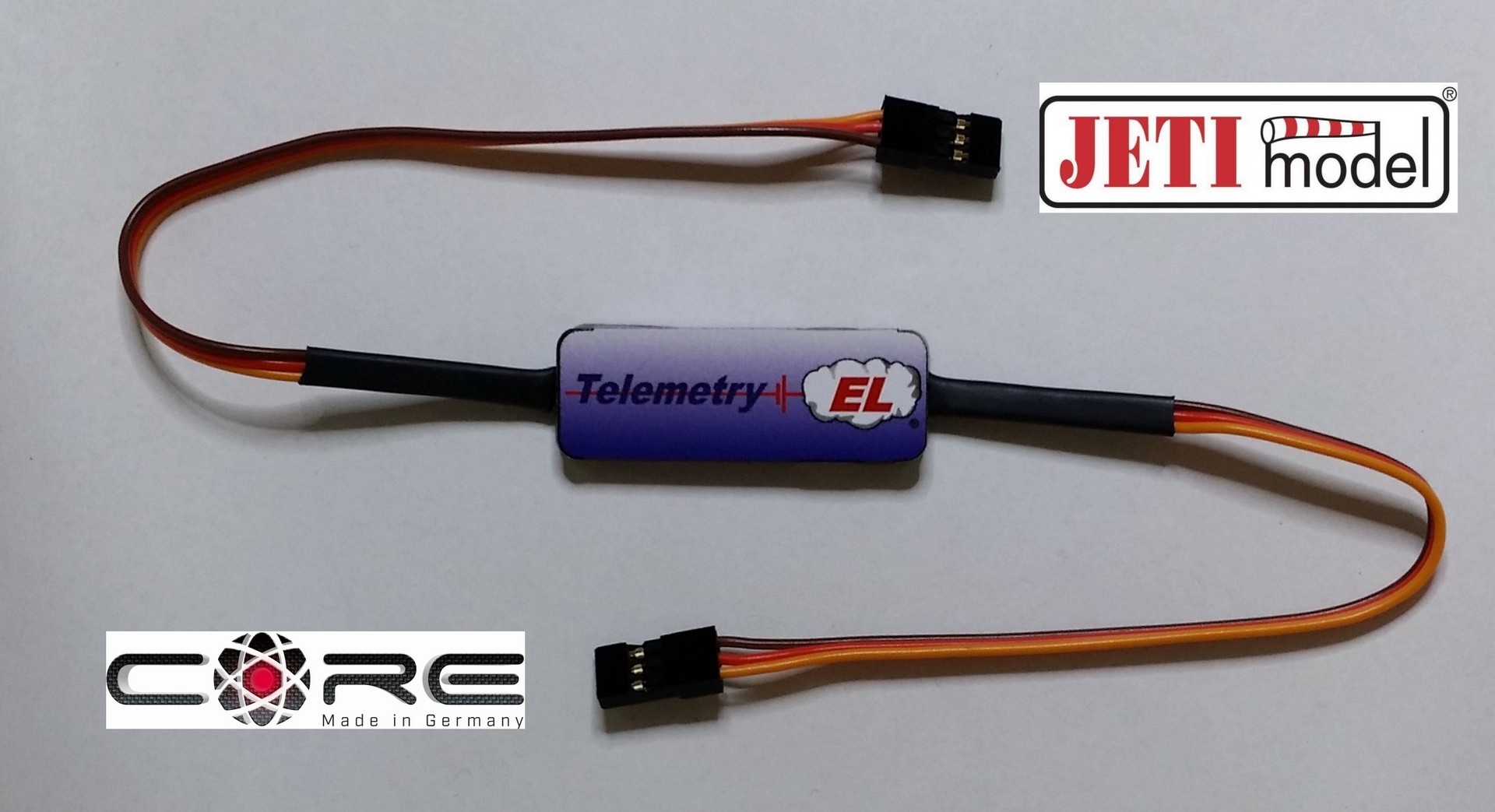

This small adapter translates the sensor values from Jeti-compatible sensors into the P²-Bus protocol of CORE. In this way, the existing sensors can be easily used on the CORE.
Connections: 2 x JR
Weight: 5g
dimension: 35 x 12 x 5 mm
Protocols: EX protocol
EX-Bus protocol
"simple text" protocol
HoTT ESC / EAM
JetCat (Jeti)
Connections: 2 x JR
Weight: 5g
dimension: 35 x 12 x 5 mm
Protocols: EX protocol
EX-Bus protocol
"simple text" protocol
HoTT ESC / EAM
JetCat (Jeti)
Quantity Discount available
45,00€
Add
The HUB is a four-way distributor for the P²BUS, enabling the connection of multiple sensors and has an extra input for a Jeti / JetCAT sensor.
This small adapter translates the sensor values from Jeti-compatible sensors into the P²-Bus protocol of CORE. In this way, the existing sensors can be easily used on the CORE.
Connections: 4 x P²BUS, 1 x Jeti/JetCAT
Weight: 8g
dimension: 32 x 18 x 10 mm
Protocols: EX protocol
EX-Bus protocol
"simple text" protocol
HoTT ESC / EAM
JetCat (Jeti)
3rd-EX
This small adapter translates the sensor values from Jeti-compatible sensors into the P²-Bus protocol of CORE. In this way, the existing sensors can be easily used on the CORE.
Connections: 4 x P²BUS, 1 x Jeti/JetCAT
Weight: 8g
dimension: 32 x 18 x 10 mm
Protocols: EX protocol
EX-Bus protocol
"simple text" protocol
HoTT ESC / EAM
JetCat (Jeti)
3rd-EX
65,00€
Add
This telemetry sensor (for PowerBox P²BUS and Jeti EX-BUS) measures the fuel flow from the tank to the engine or to the turbine and can therefore reliably display the tank level.
Due to the measuring range, the sensor is suitable for combustion engines from approx. 100ccm and turbines up to approx. 200N thrust. The sensor can be automatically set to "full" after refueling via the FuelSwitch (patch cable included).
(Shipping in 2-3 day's)
Technical data:
height 25 mm,
diameter 40 mm,
length 75 mm,
weight 50 g,
Measuring range:
15 - 200 ml/min in suction lines
15 - 800 ml/min in pressure lines
protocol Jeti EX-BUS or PowerBox P²BUS
Due to the measuring range, the sensor is suitable for combustion engines from approx. 100ccm and turbines up to approx. 200N thrust. The sensor can be automatically set to "full" after refueling via the FuelSwitch (patch cable included).
(Shipping in 2-3 day's)
Technical data:
height 25 mm,
diameter 40 mm,
length 75 mm,
weight 50 g,
Measuring range:
15 - 200 ml/min in suction lines
15 - 800 ml/min in pressure lines
protocol Jeti EX-BUS or PowerBox P²BUS
159,00€
Add
The EL-FuelPump provides a constant fuel pressure to the carburetor/engine, ensuring optimal engine performance in all flight positions.
Technical Data:
Weight ............................ 160 g
Regulation range ...... 60 – 200 mBar
Dimensions .................. 100 x 75 x 28 mm (L x W x H)
Voltage ........................... 6 – 9 V
Current ............................ 0.4 A (max. 1 A)
Hose connection ...... 4 mm (hose: 4 mm inner, 6 mm outer diameter)
Telemetry ..................... PowerBox P²Bus, Jeti EX-BUS
Technical Data:
Weight ............................ 160 g
Regulation range ...... 60 – 200 mBar
Dimensions .................. 100 x 75 x 28 mm (L x W x H)
Voltage ........................... 6 – 9 V
Current ............................ 0.4 A (max. 1 A)
Hose connection ...... 4 mm (hose: 4 mm inner, 6 mm outer diameter)
Telemetry ..................... PowerBox P²Bus, Jeti EX-BUS
349,00€
Add
